Buy sling chains: 2-leg, 4-leg and shortenable
This category offers sling chains by Dolezych with GS hooks in grade 8. They are used to attach loads to a crane or hoist. Choose by number of legs, load capacity and length. DIN EN 818-4 is the relevant standard for such slings and covers one- to four-leg sling chains.
Which sling chain fits? Load capacity compared
Values are manufacturer data. The angle of inclination is the angle of the leg to the vertical. The tag on the chain is always what counts.
The values apply to a direct hitch and only if all legs carry the load. If not all do, according to Dolezych only the capacity of the legs in use applies, and the unused legs must be hooked up into the suspension head. In a choke hitch, Dolezych permits only 80 % of these values, and the choke angle should be 120°. Basket hitches are not permitted, the few exceptions are in the operating manual. For more than 20,000 load cycles, Dolezych says to choose at least one nominal thickness larger, and the same for use as a magnet sling chain, in the welded version.
This page helps you choose and is not complete instructions. Before use, the operating manual for your chain applies.
| Sling chain | Nominal size | Capacity 0–45° | Capacity 45–60° | Length |
|---|---|---|---|---|

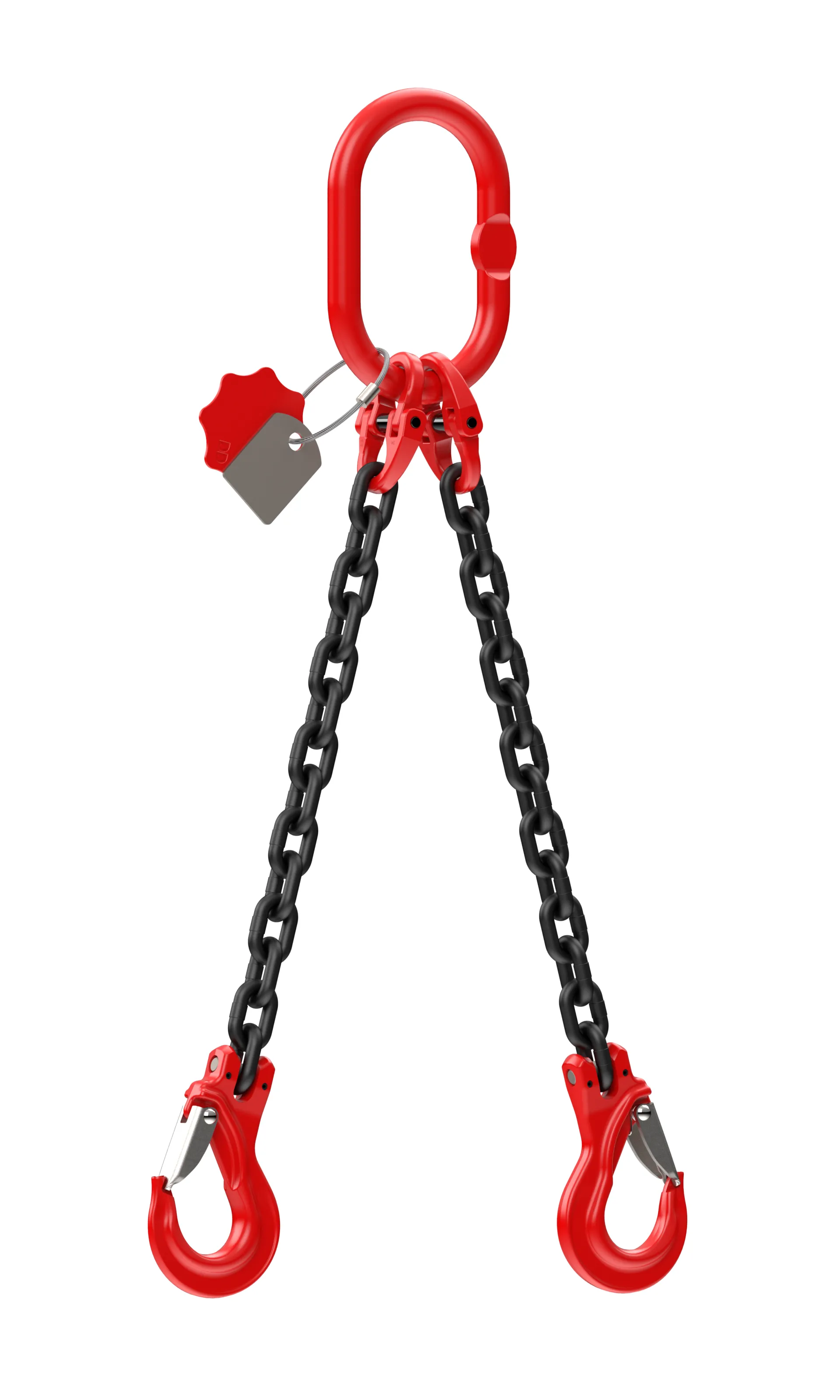

| 2-leg, GS hook | NG 8-8 | 2,800 kg | 2,000 kg | 1,000 mm |

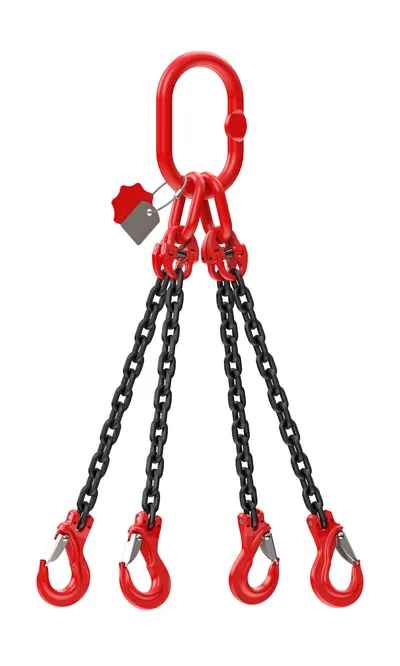

| 4-leg, GS hook | NG 6-8 | 2,360 kg | 1,700 kg | 1,000 mm |
| 4-leg, GS hook, shortenable | NG 8-8 | 4,250 kg | 3,000 kg | 2,000 mm |
For our products, the manufacturer assigns nominal size 8 and grade 8 to "NG 8-8", and nominal size 6 and grade 8 to "NG 6-8". Angles of inclination above 60° are not permitted.
2-leg or 4-leg sling chain: what matters?
A 2-leg chain is intended for loads with two attachment points. According to Dolezych, these must be on both sides of and above the load's centre of gravity. A 4-leg chain attaches at four points. According to Dolezych, these must be evenly distributed in one plane around the centre of gravity and should be above it. More legs do not automatically mean more capacity, however:
- For 3- and 4-leg chains with uneven load distribution, according to Dolezych only the value of a 2-leg chain of the same nominal size at the largest angle of inclination applies. According to German DGUV information 209-021, that is 1,600 kg (0–45°) and 1,120 kg (45–60°) for nominal size 6, and 2,800 kg and 2,000 kg for nominal size 8. Always expect this if the load is inelastic, its centre of gravity is unknown, it is unevenly shaped or the angles of inclination differ.
- If a 2-leg chain has different angles of inclination, according to Dolezych only the capacity of a single leg applies.
- German DGUV rule 109-017 also counts only two legs as load-bearing if even distribution is not ensured.
The shortenable 4-leg sling chain has shortening hooks that let you adapt the leg length.
Sling chain or lifting sling?
This depends on the temperature, the edges and the surface of the load. According to German DGUV rule 109-017, lifting slings and round slings made of polyester or polyamide are permitted up to 100 °C, those made of polypropylene up to 80 °C. According to the operating manual, sling chains cover a wider range. They are not immune, though:
- Heat: The Dolezych manual gives a range of −40 to +400 °C. From +200 °C, 90 % of the capacity is permitted, and from +300 °C, 75 %. Other documents state different values here, so the operating manual for your chain is what counts.
- Sharp edges: These reduce capacity. An edge already counts as sharp if its radius is smaller than the diameter of the chain link. For these chains, Dolezych names intermediate layers or one nominal size stronger. German DGUV rule 109-017 generally allows edge protectors to be omitted on sling chains if the chain is loaded to no more than 80 %. This applies only if the operating manual says nothing else, and Dolezych does not name this option for these chains.
- Smooth or slippery loads: According to Dolezych, these chains are not suitable for them.
- Chemicals: According to Dolezych, even vapours can cause embrittlement or cracks. The chains must not be used in galvanising and pickling baths of hot-dip galvanising plants.
Lashing straps, by contrast, are for securing loads on a vehicle.
Frequently asked questions about sling chains
How often must a sling chain be inspected?
According to German DGUV rule 109-017, lifting accessories must be inspected by a competent person at intervals of no more than one year, and more often depending on use. The employer sets the intervals. Under this rule, round steel chains must also be checked for cracks by non-destructive testing at least every three years, and at least once a year for port work. The German BG BAU also gives a daily check for proper condition as an example.
When must a sling chain be taken out of service?
Among others, in these cases. The operating manual for your chain has the full list.
- Breakage, incipient cracks, cuts, notches or corrosion pits
- Discolouration
- Deformation of a chain, suspension, transition or connecting link
- More than 10 % reduction in average link thickness
- Elongation: DGUV information 209-021 names 5 %, measured on the inside. Dolezych names more than 3 %, measured on the outside of the link. Follow the operating manual for your chain.
- Hook opening widened by more than 10 % and wear of the hook base of more than 5 %, according to Dolezych
- Unauthorised modifications to the chain, according to Dolezych
- A missing or illegible tag, according to Dolezych
What does grade 8 mean?
The grade is part of the chain's marking. DIN EN 818-4 applies to sling chains of grade 8.
What is a shortenable sling chain for?
The shortening hooks let you shorten individual legs. If the legs then have different angles of inclination, according to Dolezych only the value of a 2-leg chain of the same nominal size at the largest angle of inclination applies, not the table value of the 4-leg chain. According to German DGUV information 209-021, that is 2,800 kg (0–45°) and 2,000 kg (45–60°) for nominal size 8. The operating manual explains how to shorten the chain.
Questions about choosing a chain? Call us: +49 2237 628095-00, Monday to Friday, 9 am to 5 pm. Our information does not replace the risk assessment and the operating manual.
