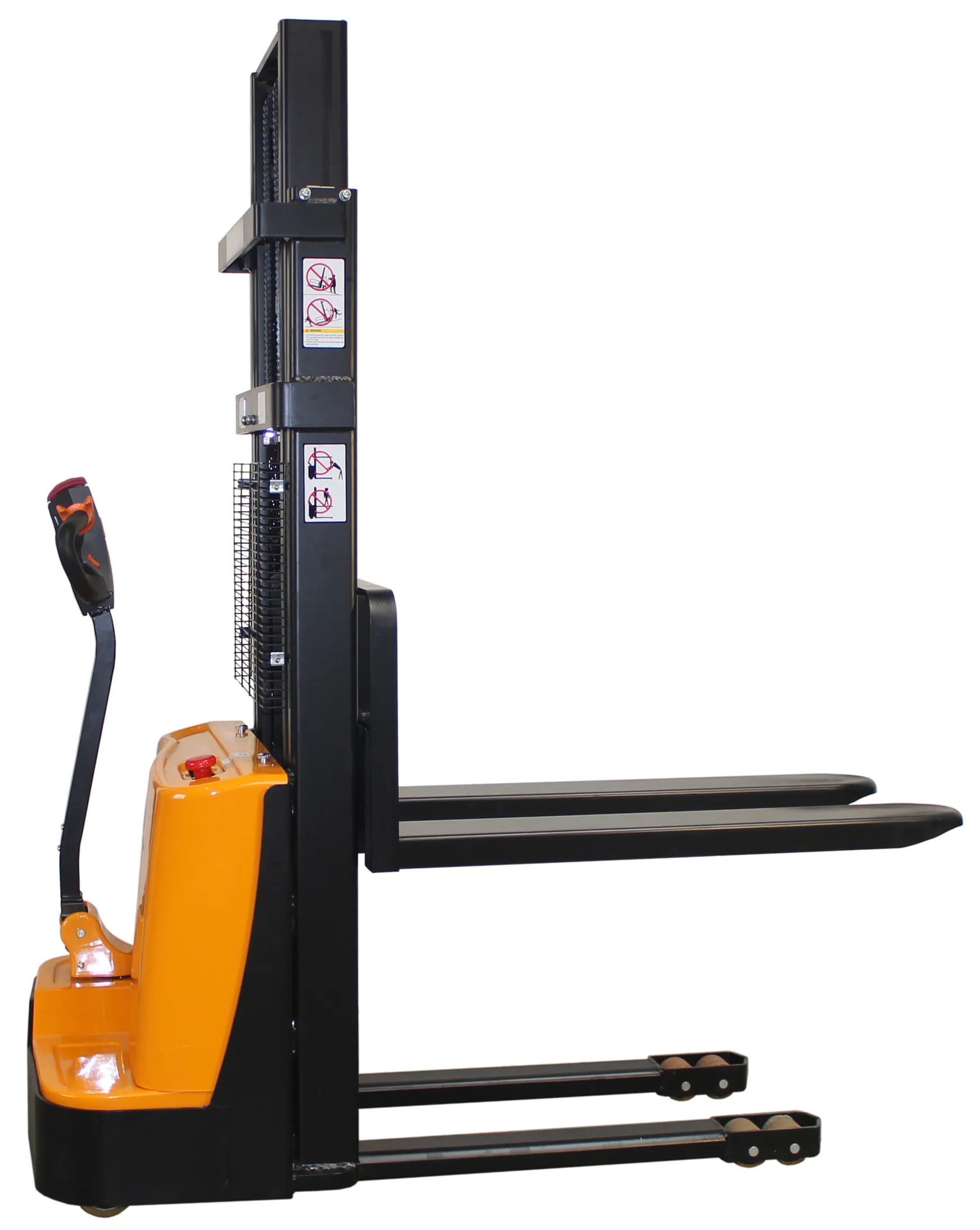

qteck® HME 1000/2500, electric high lift pallet truck

Product description of the electric pedestrian pallet truck HME 1000/1600 The HME 1000/1600 electric pedestrian pallet truck is an indispensable tool for the efficient handling of palletised goods. Developed for loading and unloading lorries and containers as well as for storage in racking systems, this high lift pallet truck offers an optimum solution for logistics and storage requirements. Advantages and possible applications Thanks to its compact design and controllable travel speed, the HME 1000/1600 enables precise and safe manoeuvring, even in confined storage spaces. The fully electric operation makes it easy to move, lift and lower loads weighing up to 1000 kg. The ergonomic operating device from a renowned German manufacturer ensures that all functions can always be operated safely and conveniently. No special driving licence required Another advantage of this high lift truck is that no special industrial truck driving licence is required, which makes it easier to use for a wide range of users. Technical details Maximum load capacity: 1000 kg Fork length: 1150 mm Load width: 570 mm Load centre of gravity: 600 mm Lifting range: 90-1600 mm PU tyres Drive wheel: Ø250x75 mm Tandem load rollers: Ø80x70 mm Battery: 24V/120Ah Drive motor power: 0.75 KW Maximum travelling speed: 4.0 km/h Lift motor power: 2.0 KW Lifting speed: 0.10-0.20 m/s (depending on load) Lowering speed: 0.10-0.12 m/s (load-dependent) Dead weight: 485 kg Easy maintenance and power supply The maintenance-free batteries of the HME 1000/1600 can be easily charged at any 230V socket, as a charger is already included and integrated in the scope of delivery. This ensures continuous operational readiness and minimises downtimes. The HME 1000/1600 electric pedestrian pallet truck is an efficient, user-friendly and cost-effective solution for handling goods in various logistical environments. Its versatility and ease of use make it the ideal choice for companies looking to optimise their warehouse processes.

Electric pedestrian pallet truck HME 1000/3000 Efficient handling and transport The HME 1000/3000 electric pedestrian pallet truck is an indispensable tool for modern warehousing and logistics processes. With its ability to lift and transport loads of up to 1000 kg, it is the ideal solution for loading and unloading lorries and containers as well as transporting palletised goods. Compact design for confined spaces Thanks to its compact design, the HME 1000/3000 is easy to manoeuvre even in confined storage spaces. The adjustable travelling speed ensures safe and precise handling, while the ergonomic control unit from a renowned German manufacturer guarantees intuitive control. Electric lifting and lowering The moving, lifting and lowering of loads is completely electric, which increases efficiency and safety in daily operation. The pallet truck can handle a lifting range of 90 to 3000 mm, ideal for different rack heights and storage requirements. Advantages without an industrial truck driving licence A key advantage of the HME 1000/3000 is that the operator does not require an industrial truck driving licence, which makes it easier to use in different working environments. In addition, the integrated charger for the maintenance-free batteries can be used at any 230V socket, which ensures operational readiness. Technical details Maximum load capacity: 1000 kg Fork length: 1150 mm Carrying width: 570 mm Load centre of gravity: 600 mm Lifting range: 90-3000 mm PU tyres Drive wheel: Ø250x75 mm Tandem load rollers: Ø80x70 mm Battery: 24V/120Ah Traction motor power: 0.75 KW Maximum travelling speed: 4.0 Km/h Lift motor power: 2.0 KW Lifting speed: 0.10-0.20 m/s (depending on load) Lowering speed: 0.10-0.12 m/s (load-dependent) Dead weight: 533 kg Application examples The HME 1000/3000 is ideal for use in warehouses, production facilities and logistics centres. It facilitates the stacking and organisation of goods in racking systems and supports efficient work processes thanks to its flexibility and user-friendliness.

Product description: Electric pedestrian pallet truck HME 1000/3500 The HME 1000/3500 electric pedestrian pallet truck is an indispensable tool for efficient warehouse logistics and goods handling. Developed for loading and unloading lorries and containers, this pallet truck offers a reliable solution for transporting palletised goods and storing them in racking systems. Advantages and functions With a maximum load capacity of 1000 kg and a fork length of 1150 mm, the HME 1000/3500 is suitable for a wide range of applications. Thanks to the adjustable travel speed and compact design, it is easy to manoeuvre even in confined storage spaces. Moving, lifting and lowering loads is completely electric, which makes handling much easier. Ergonomic design The ergonomic control unit comes from a renowned German manufacturer and ensures that all functions of the pallet truck can be operated safely and comfortably. Another advantage is that no industrial truck driving licence is required to use this device. Technical details Maximum load capacity: 1000 kg Fork length: 1150 mm Carrying width: 570 mm Load centre of gravity: 600 mm Lifting range: 90-3500 mm PU tyres Drive wheel: Ø250x75 mm Tandem load rollers: Ø80x70 mm Battery: 24V/120Ah Traction motor power: 0.75 KW Maximum travelling speed: 4.0 Km/h Lift motor power: 2.0 KW Lifting speed: 0.10-0.20 m/s (depending on load) Lowering speed: 0.10-0.12 m/s (load-dependent) Dead weight: 555 kg Application examples The HME 1000/3500 is ideal for use in warehouses, production facilities and logistics centres. Its versatility makes it ideal for handling sensitive goods and for the rapid handling of goods in confined spaces. The integrated charging unit allows the maintenance-free batteries to be easily charged at any 230V socket, making operation flexible and efficient.

Electric pedestrian pallet truck HME 1500/1600 The HME 1500/1600 electric pedestrian pallet truck is an indispensable tool for modern warehousing and logistics processes. With its ability to effortlessly lift, lower and transport loads of up to 1500 kg, it offers an efficient solution for loading and unloading lorries and containers as well as for the internal transport of palletised goods. Versatile application options Thanks to its compact design and adjustable travel speed, the HME 1500/1600 can be manoeuvred with ease even in confined storage spaces. This makes it ideal for use in a wide variety of warehouse environments, from large distribution centres to smaller storage areas. Whether storing and retrieving goods in racking systems or transporting goods over short distances - this pallet truck proves to be extremely flexible. Ergonomic operation and safety The HME 1500/1600 is equipped with an ergonomic control unit developed by a renowned German manufacturer. This ensures intuitive and safe handling of all functions. Another advantage is that no special industrial truck driving licence is required for operation, which considerably expands the range of applications and reduces training requirements. Technical specifications Maximum load capacity: 1500 kg Fork length: 1150 mm Carrying width: 570 mm Load centre of gravity: 600 mm Lifting range: 90-1600 mm PU tyres Drive wheel: Ø250x75 mm Tandem load rollers: Ø80x70 mm Battery: 24V/120Ah Traction motor power: 0.75 KW Maximum travelling speed: 4.0 km/h Lift motor power: 2.0 KW Lifting speed: 0.10-0.20 m/s (depending on load) Lowering speed: 0.10-0.12 m/s (load-dependent) Dead weight: 506 kg Easy maintenance and power supply The HME 1500/1600 is equipped with maintenance-free batteries that can be charged at any 230 V socket using the charger included in the scope of delivery. This ensures a simple and flexible power supply that guarantees operation of the high lift pallet truck at all times.

Electric pedestrian pallet truck HME 1500/2500 Product description The HME 1500/2500 electric pedestrian pallet truck is the ideal helper for efficient logistics processes. It is ideal for loading and unloading lorries and containers and for transporting palletised goods. Thanks to its compact design, it is easy to manoeuvre even in confined storage spaces. Functions and advantages Electric travelling, lifting and lowering of loads up to 1500 kg. Ergonomic control unit from a renowned German manufacturer. No driving licence required for the operator. Integrated charger for easy charging at any 230 V socket. Technical details Maximum load capacity: 1500 kg Fork length: 1150 mm Carrying width: 570 mm Load centre of gravity: 600 mm Lifting range: 90-2500 mm PU tyres Drive wheel Ø250x75 mm Tandem load rollers Ø80x70 mm Battery: 24V/120Ah Traction motor power: 0.75 KW Maximum travelling speed: 4.0 Km/h Lifting motor power: 2.0 KW Lifting speed: 0.10-0.20 m/s (depending on load) Lowering speed: 0.10-0.12 m/s (load-dependent) Dead weight: 533 kg Application examples The HME 1500/2500 is ideal for use in warehouses, production facilities and logistics centres. It facilitates storage and retrieval in racking systems and optimises the material flow. Thanks to its high load capacity and simple operation, it is also suitable for use in retail environments where fast and safe handling of goods is required.
