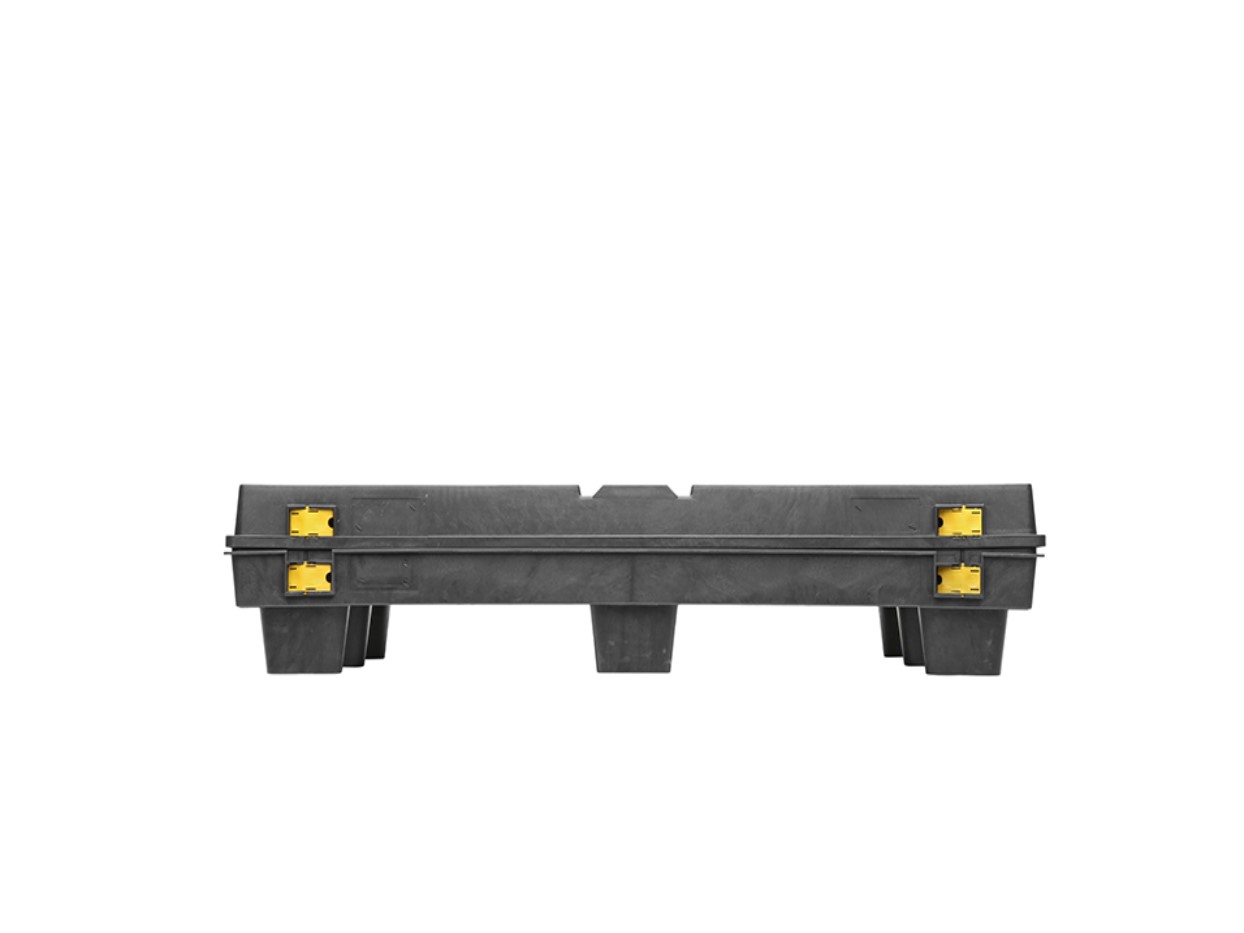

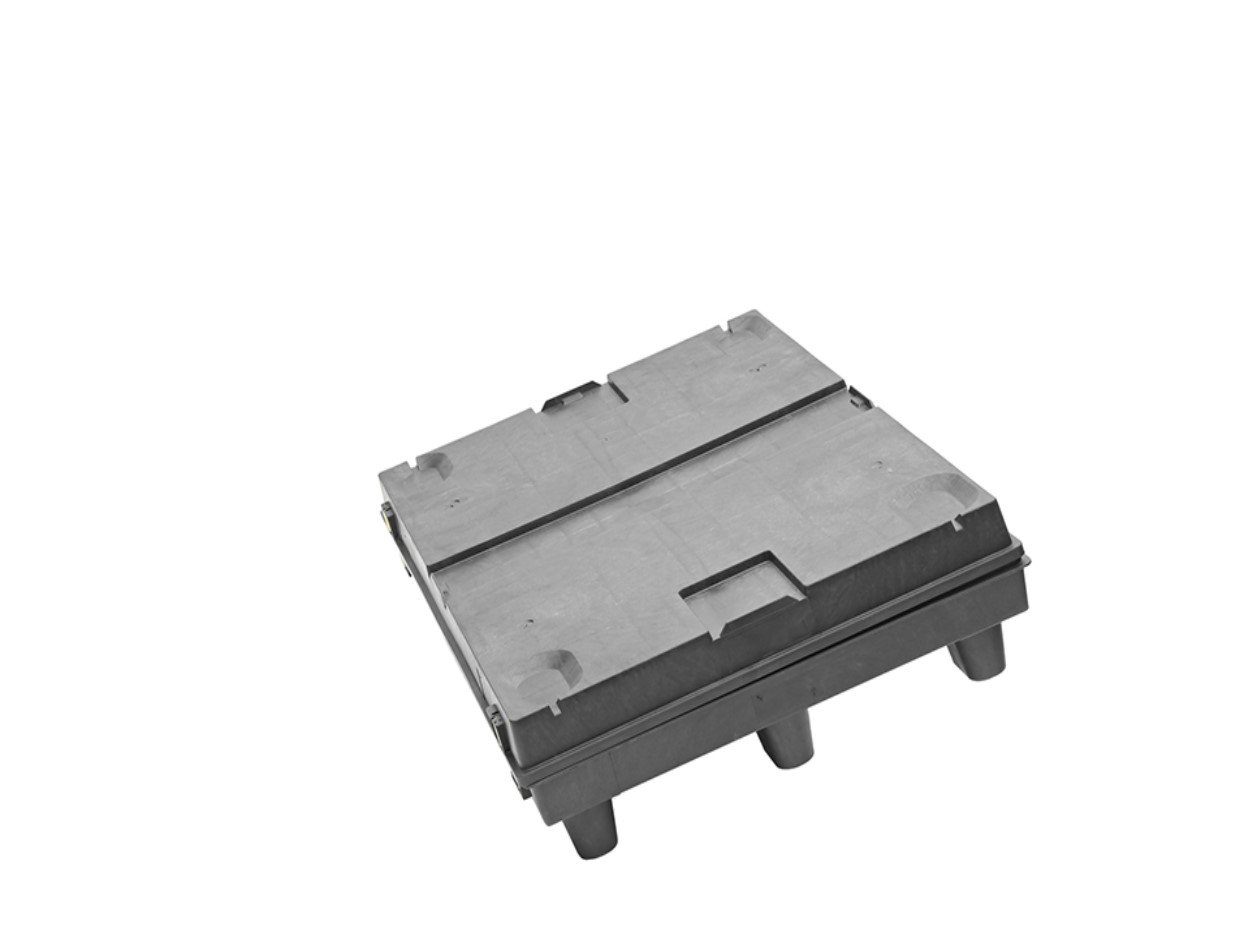

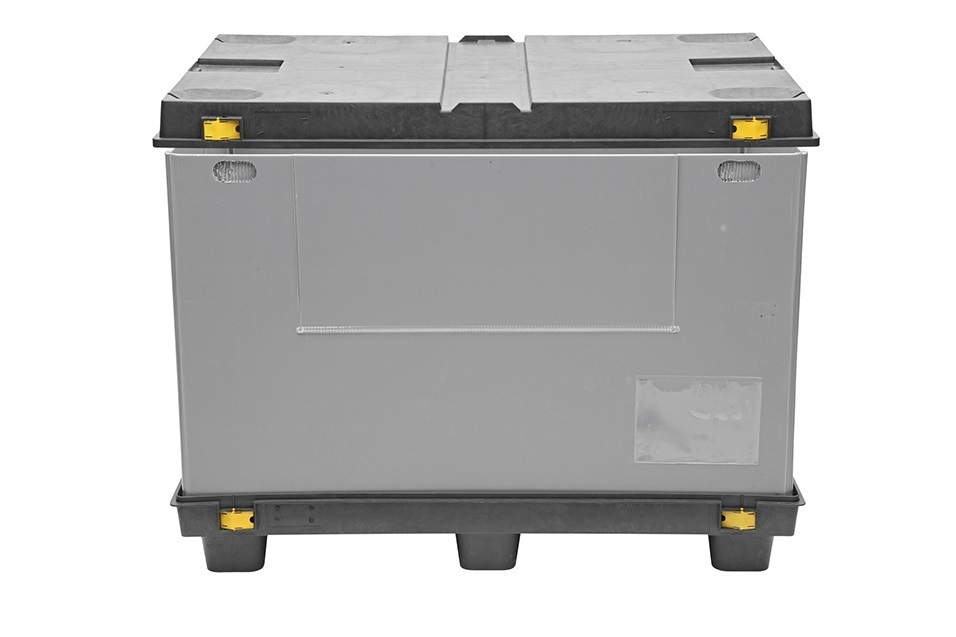

Kunststoffpalette ultraleichte Faltbox im Euromaß, 1200x800x850 mm, TIDUS MAGIC BOX 1208

Large containers with mounted runners, wheels and feetFor efficient production logistics, the large containers in the basicline plus series can be fitted with skids, feet or wheels. This means that the large containers can be easily transported using a hand pallet truck or forklift. The wheels can also be used to move the containers by hand.Containers in heights of 320 and 420 mm are available in different versions with a permanently bolted base. The boxes are supplied completely unassembled as a set.The accessories are also available separately for self-assembly. It is attached with a plug-in connection and can be combined with all large containers in the basicline plus series.

Large container with hinged modular top Product description The large container consists of a sturdy pallet and a hinged modular attachment with a height of 200 mm. This container is designed for high loads, with a static load of up to 4,000 kg and a dynamic load of up to 1,600 kg. It is designed for storage in high-bay racking with a maximum load of up to 1,000 kg. The pallet box stands on 2 runners and 2 feet and can be driven under from all four sides. The large container cannot be nested, but can be optionally extended with additional module attachments. Technical data External dimensions (L x W x H): 1200 x 800 x 400 mm Internal dimensions (L x W x H): 1120 x 720 x 183 mm Static load capacity: up to 4,000 kg Dynamic load capacity: up to 1,600 kg High bay load: up to 1,000 kg Material: Polypropylene Application range: -20 to +60 °C Colour pallet: black Colour of top module: grey Module top height: 200 mm per module Weight 4 modules: 52.03 kg Nestable: No Options: Slip lid Special features High load capacities: Static load up to 4,000 kg and dynamic load up to 1,600 kg. Flexibility: Can be extended with additional module attachments for variable storage heights. Stability: Robust polypropylene construction for long-term use. Easy access: Can be driven under from all four sides for easy handling with hand pallet trucks or forklifts. Temperature resistance: Suitable for applications from -20 to +60 °C. Slip lid: Optional lid for additional protection.

TIDUS VARIO BOX 806 Produktbeschreibung Die TIDUS VARIO BOX 806 ist eine kompakte und vielseitige Palettenbox im Halbpalettenmaß, ideal für flexible Logistiklösungen. Das System besteht aus einer robusten 3-kufen Halbpalette, drei Rahmen (Modulaufsätzen) und einem Deckel. Durch die modulare Bauweise kann die Höhe der Box und damit das Ladevolumen in 200 mm-Schritten angepasst werden. Dieses System bietet nicht nur spritzwasser- und staubgeschützten Transport, sondern ist auch für den Mehrweg- und Hochregaleinsatz geeignet. Die optionale Zwischenböden ermöglichen eine optimale Raumausnutzung. Das Boxensystem ist sowohl mit als auch ohne Deckel stapelbar und bis zu 400 kg regalfähig. Technische Daten Außenmaße (L x B x H): 800 x 600 x 760 mm (mit 3 Modulaufsätzen) Innenmaße (L x B x H): 552 x 752 x 600 mm (mit 3 Modulaufsätzen) Innenvolumen: 0,25 m³ (mit 3 Modulaufsätzen) Modulaufsatzhöhe: jeweils 200 mm Traglast statisch: bis 2.000 kg Traglast dynamisch: bis 800 kg Belastung Hochregal: bis zu 400 kg Material: Recyceltes Polypropylen (PP) Gewicht: ca. 31 kg Temperaturbereich: -20 bis +60 °C Optionen: Stülpdeckel, Zwischenlagen, zusätzliche Rahmen (Modulaufsätze), Etikettenhalter Besondere Merkmale Flexible Höhe: Die Höhe der Box kann durch die Modulaufsätze in 200 mm-Schritten angepasst werden. Optimale Raumausnutzung: Optional erhältliche Zwischenböden verbessern die Nutzung des Innenvolumens. Stapelbar: Das System ist sowohl mit als auch ohne Deckel stapelbar. Widerstandsfähig: Hergestellt aus recyceltem Polypropylen für eine nachhaltige Lösung. Vielfältige Optionen: Zubehör wie Stülpdeckel, zusätzliche Rahmen und Etikettenhalter sind verfügbar.

TIDUS VARIO BOX 1208 Product description The TIDUS VARIO BOX is a versatile large container in Euro pallet dimensions (800 x 1200 mm) with a height of 950 mm. This container consists of a sturdy pallet and three foldable module attachments, each of which is 200 mm high. The internal volume of the box is 250 litres, and the box offers a total volume of 0.69 m³ when the module attachments are used to the maximum. The TIDUS VARIO BOX is designed for high loads, with a static load of up to 4,000 kg, a dynamic load of up to 1,600 kg and a high-bay load of up to 800 kg. The container stands on 2 runners and 2 feet and can be driven under from all four sides, making it easy to handle with a hand pallet truck or forklift. The box can optionally be fitted with additional module attachments and offers the option of using a slip lid. Technical data External dimensions (L x W x H): 1200 x 800 x 1010 mm Internal dimensions (L x W x H): 752 x 1152 x 800 mm Static load capacity: up to 4,000 kg Dynamic load capacity: up to 1,600 kg Load capacity high rack: up to 800 kg Material: Polypropylene Application range: -20 to +60 °C Colour pallet: black Colour of module attachment: grey Module attachment height: 200 mm per module Total weight (empty) with 4 modules: 59.85 kg Total weight (empty) with 3 modules: 52.03 kg Internal volume: 0.69 m³ (with 4 module attachments inserted) Nestable: No Options: Slip lid Special features Flexible use: Three foldable module attachments allow variable height adjustments and extend the utilisation options. High load capacities: Robust design for high static and dynamic loads and high-bay use. Efficient handling: Can be driven under from all four sides for easy movement with hand pallet trucks or forklifts. Temperature resistance: Suitable for temperatures from -20 to +60 °C. Additional options: Slip lid for additional protection and safety.

TIDUS VARIO BOX 1210 Product description The TIDUS VARIO BOX 1210 is a modular pallet box system in industrial dimensions (1200 x 1000 mm). This system consists of a robust heavy-duty pallet, a lid attachment and a variably selectable number of wall frame elements. The height of the container can be flexibly adjusted in 200 mm increments to optimise the load volume according to logistics requirements. As an option, intermediate shelves can be inserted between each push-on frame to further increase flexibility. With a static load capacity of up to 5,000 kg and a dynamic load capacity of up to 2,000 kg, the VARIO BOX 1210 is designed for demanding logistics requirements. The container is suitable for use in high-bay racking up to a load of 1,000 kg. The internal dimensions are 952 x 1152 x 800 mm with an internal volume of 0.87 m³ (with 4 module attachments). Technical data External dimensions (L x W x H): 1200 x 1000 x 1010 mm (with 4 module attachments) Internal dimensions (L x W x H): 952 x 1152 x 800 mm (with 4 module attachments) Internal volume: 0.87 m³ (with 4 module attachments) Static load capacity: up to 5,000 kg Dynamic load capacity: up to 2,000 kg High bay load: up to 1,000 kg Material: Recycled PP (polypropylene) Module top height: 200 mm each Colour: Grey (standard) Options: Slip lid, intermediate layers, label holder Special features Modular design: Flexible height adjustment thanks to 200 mm high module attachments. High load capacities: Robust design for high static and dynamic loads and high-bay use. Versatile use: Optional accessories such as snap-on lids, intermediate layers and label holders for a customised solution. Material: Made from recycled polypropylene (PP) for sustainable and environmentally friendly logistics solutions.
