Manual lift trolley
qteck® HHM1000/1550, manual high lift pallet truck
Product description of the HHM 1000/1550 manual pallet truck The HHM 1000/1550 manual high lift pallet truck is an indispensable tool for the efficient handling of loads in warehouses and production facilities. With a maximum load capacity of 1000kg and a lifting height of up to 1550mm, this high lift pallet truck offers an excellent solution for loading and unloading vehicles as well as storing and retrieving shelves. High-quality hydraulic unit with speedlift function Equipped with an innovative hydraulic unit, the HHM 1000/1550 offers a speedlift function that almost doubles the lifting distance for loads of up to 200kg per pumping operation. This function is made possible by a special hydraulic valve control, which significantly increases the efficiency and speed of the work processes. Versatile operation and high reliability The high-lift truck can be operated using either a hand or foot control, which allows flexible use in different work situations. The use of high-quality components and an integrated safety and overload valve for the hydraulic pump ensure a long service life and reliability. Technical details Maximum load capacity: 1000kg Fork length: 1150mm Carrying width: 550mm Load centre of gravity: 500mm Lifting range: 90-1550mm Nylon tyres Swivel castors: Ø180x50mm Tandem load castors: Ø80x70mm Own weight: 190kg Application examples The HHM 1000/1550 is ideal for use in warehouses where fast and efficient work is required. It facilitates the movement of heavy pallets from one location to another and enables the precise positioning of goods on shelves. This pallet truck is also a valuable aid in production, where materials often need to be transported between different stations. Easy manoeuvrability Thanks to the ball-bearing nylon castors, the pallet truck is easy to manoeuvre, making it particularly versatile. Even in narrow aisles or over long distances, the HHM 1000/1550 can be manoeuvred effortlessly, which significantly improves working conditions for staff. Conclusion The HHM 1000/1550 manual pallet truck is an excellent choice for companies that value efficiency, reliability and flexibility. Its high-quality components and well thought-out design make it a durable and powerful tool in any warehouse or production environment.
- Gabelzinkenlänge: 1150mm
- Traglast: maximale Traglast 1000Kg
- Gabelbreite: 550mm
- Hubbereich: 90-1550mm
- Material Last-Lenk-Rollen: Lenkrollen:Nylon weißGebremst; Lastrollen:Nylon weiß Tandem
- Bauhöhe: 1985 mm
- Eigenschaften: Speed-Lift Pumpe
- Gesamtlänge: 1700mm

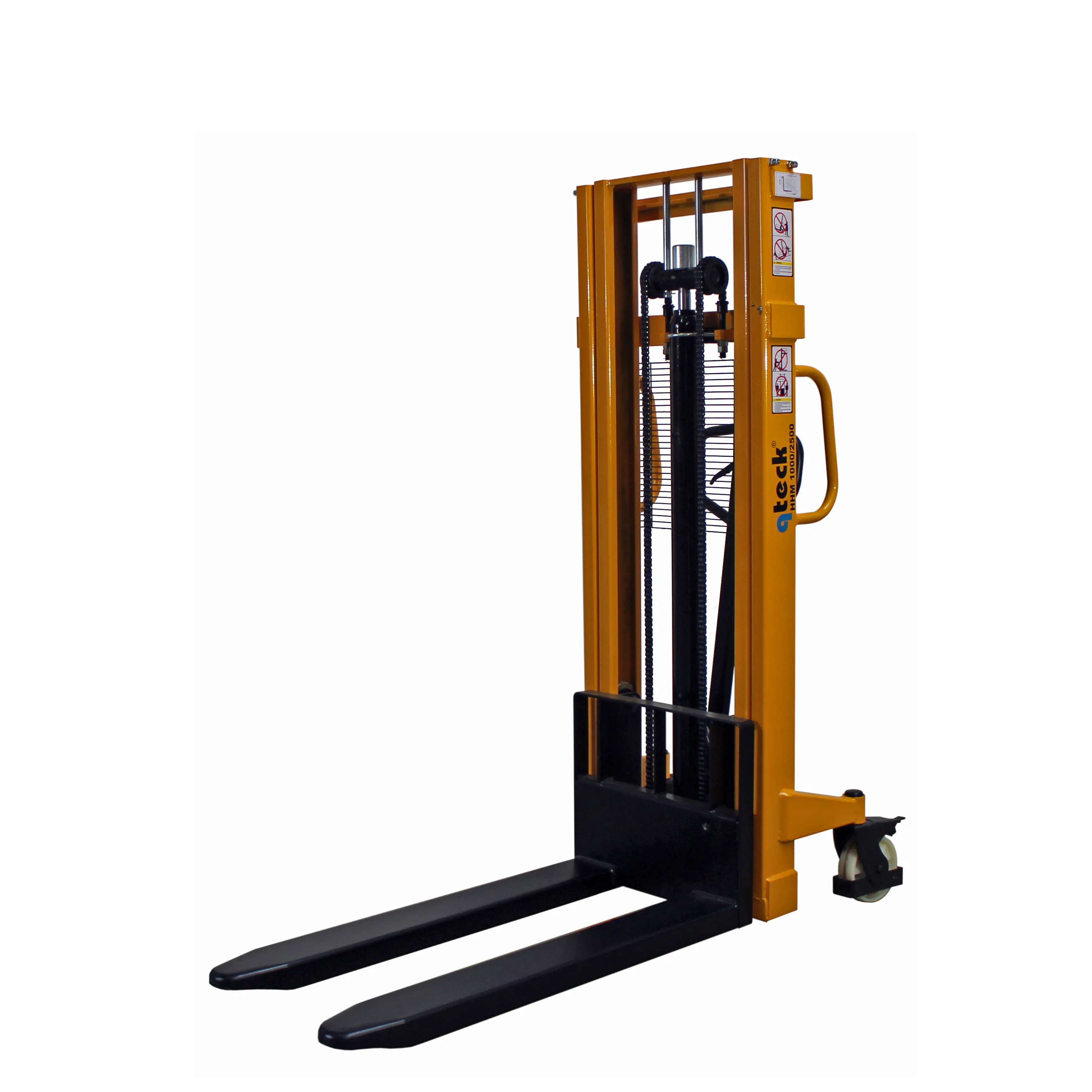

qteck® HHM1000/2500, manual high lift pallet truck
Product description of the HHM 1000/2500 high lift pallet truck The HHM 1000/2500 manual high lift pallet truck is a reliable and efficient helper for handling loads in warehouses and production facilities. With a maximum load capacity of 1000kg and a lifting height of up to 2500mm, it is ideal for loading and unloading vehicles as well as storing and retrieving goods from shelves. Main features and benefits Speedlift function: The integrated hydraulic unit with speedlift function enables almost double the lifting speed with loads of up to 200kg, which significantly increases efficiency. Versatile operation: The pallet truck can be operated both by hand and foot control, ensuring flexible handling. Robust construction: High-quality components and a safety and overload valve on the hydraulic pump guarantee a long service life and reliability. Easy manoeuvrability: Ball-bearing nylon castors ensure smooth running and make the pallet truck easy to manoeuvre. Technical details Maximum load capacity: 1000kg Fork length: 1150mm Load width: 550mm Load centre of gravity: 500mm Lifting range: 90-2500mm Free lift: up to approx. 400mm Nylon tyres Swivel castors: Ø180x50mm Tandem load castors: Ø80x70mm Tare weight: 263kg Application examples The HHM 1000/2500 high lift pallet truck has a wide range of applications in various branches of industry. In warehouses, it makes it easier to store and retrieve pallets from high shelves. In logistics, it optimises the loading and unloading of trucks. In production facilities, it is also an indispensable tool for transporting materials efficiently between different work stations. The HHM 1000/2500 high lift pallet truck is an indispensable tool for companies that prioritise efficiency and reliability. Its advanced features and robust construction make it an ideal choice for daily use in demanding environments.
- Gabelzinkenlänge: 1150mm
- Traglast: maximale Traglast 1000Kg
- Gabelbreite: 550mm
- Hubbereich: 90-2500mm
- Material Last-Lenk-Rollen: Lenkrollen:Nylon weißGebremst; Lastrollen:Nylon weiß Tandem
- Bauhöhe: 1845 mm
- Eigenschaften: Speed-Lift Pumpe
- Gesamtlänge: 1700mm
qteck® HHM1000/3000, manual high lift pallet truck
Product description of the HHM 1000/3000 manual pallet truck The HHM 1000/3000 manual pallet truck is an indispensable tool for companies that regularly have to lift and transport heavy loads. With a maximum load capacity of 1000kg and a lifting height of up to 3000mm, this high lift pallet truck offers outstanding support when loading and unloading vehicles and when storing and retrieving goods from shelves. Efficient hydraulic unit with speedlift function The integrated hydraulic unit with speedlift function makes it possible to lift loads of up to approx. 200kg with almost double the lifting distance per pumping operation. This is achieved by a special valve control system that significantly increases the efficiency and speed of the lifting process. Versatile operating options The high lift pallet truck can be operated using both a hand and foot control, which enables flexible and ergonomic operation. This is particularly advantageous in working environments where fast and precise movements are required. Robust construction and reliability The use of high-quality individual parts and the integrated safety and overload valve of the hydraulic pump ensure a long service life and reliability of the pallet truck. These features make it a long-lasting investment for any warehouse or logistics company. Easy manoeuvrability Thanks to the ball-bearing nylon castors, the pallet truck is easy to manoeuvre and versatile. The swivel castors with a diameter of 180x50mm and the tandem load castors with a diameter of 80x70mm contribute to smooth and stable running. Technical details at a glance Maximum load capacity: 1000kg Fork length: 1150mm Carrying width: 550mm Load centre of gravity: 500mm Lifting range: 90-3000mm Free lift: up to approx. 400mm Dead weight: 280kg Application examples The HHM 1000/3000 high lift pallet truck is ideal for use in warehouses, production facilities and logistics centres. It facilitates the loading and unloading of lorries, the storage and retrieval of pallets from high shelves and the transport of heavy goods within the premises.
- Gabelzinkenlänge: 1150mm
- Traglast: maximale Traglast 1000Kg
- Gabelbreite: 550mm
- Hubbereich: 90-3000mm
- Material Last-Lenk-Rollen: Lenkrollen:Nylon weißGebremst; Lastrollen:Nylon weiß Tandem
- Bauhöhe: 2090mm
- Eigenschaften: Speed-Lift Pumpe
- Gesamtlänge: 1700mm

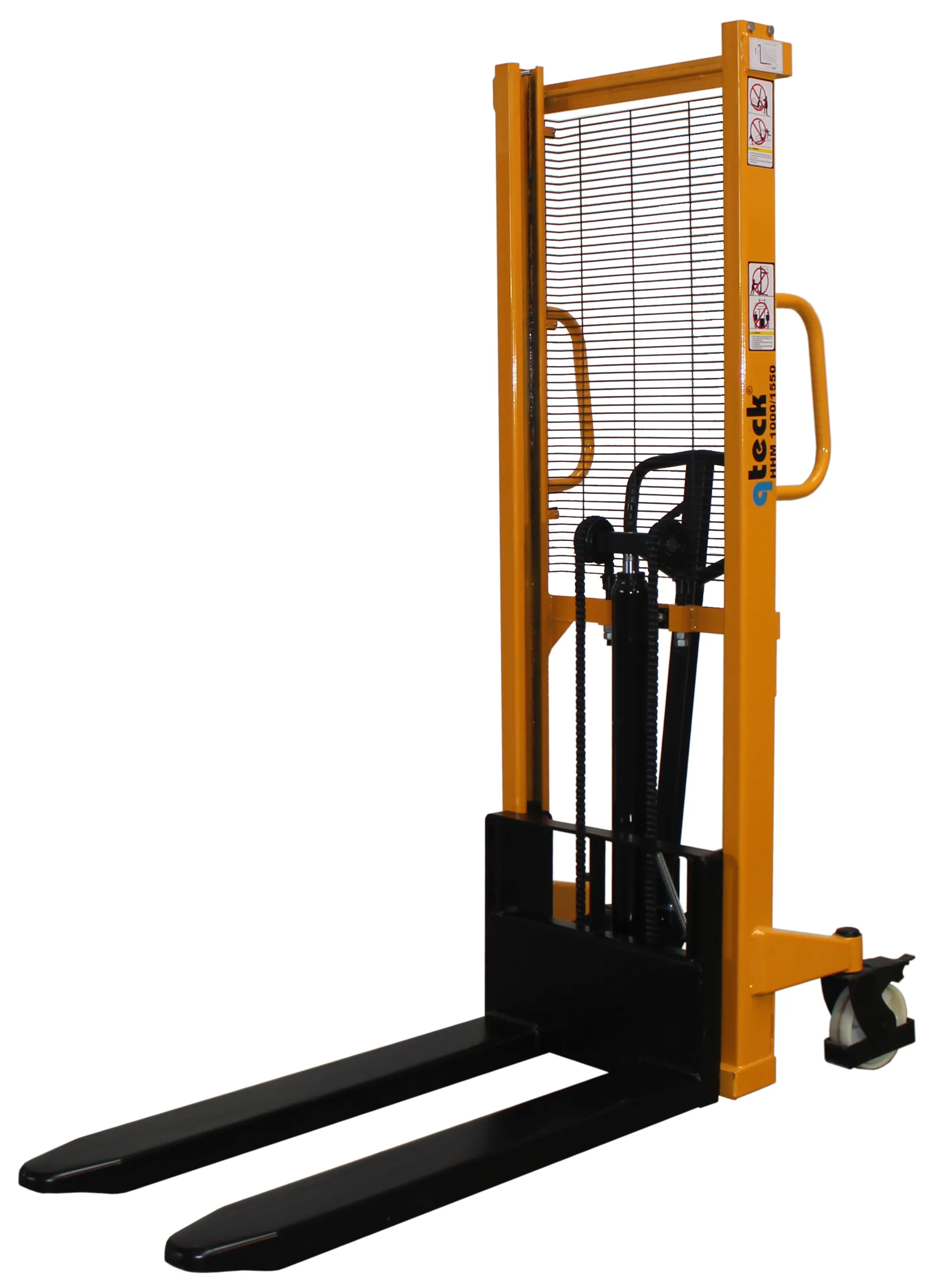

qteck® HHM1500/1550, manual high lift pallet truck
Product description of the HHM 1500/1550 manual pallet truck The HHM 1500/1550 manual high lift pallet truck is an indispensable tool for efficiently lifting and transporting loads in warehouses and production facilities. With a maximum load capacity of 1500kg and a lifting height of up to 1550mm, this pallet truck offers an ideal solution for loading and unloading vehicles as well as storing and retrieving goods from shelves. Outstanding performance thanks to hydraulic unit with speedlift function The integrated hydraulic unit with speedlift function enables loads weighing up to 200kg to be lifted more efficiently. A special hydraulic valve control system almost doubles the lifting distance per pumping operation, which significantly increases the working speed and boosts productivity. User-friendly operation The high-lift truck is conveniently operated using a hand or foot control. This enables flexible handling and facilitates work in different areas of application. Robustness and reliability Thanks to the use of high-quality individual parts, including a safety and overload valve for the hydraulic pump, the pallet truck offers a long service life and reliability. This ensures long-term and safe operation. Easy manoeuvrability The ball-bearing nylon castors enable smooth running and easy manoeuvrability. This makes the pallet truck versatile, even in confined spaces or in challenging floor conditions. Technical details Maximum load capacity: 1500kg Fork length: 1150mm Load width: 550mm Load centre of gravity: 400mm Lifting range: 90-1550mm Nylon tyres Swivel castors: Ø180x50mm Tandem load castors: Ø80x70mm Own weight: 198kg Application examples The HHM 1500/1550 high lift pallet truck is ideal for use in logistics centres, warehouses and production facilities. It facilitates the lifting and transporting of heavy loads, the loading and unloading of lorries and the efficient storage and retrieval of goods from shelves.
- Gabelzinkenlänge: 1150mm
- Traglast: maximale Traglast 1500Kg
- Gabelbreite: 550mm
- Hubbereich: 90-1550mm
- Material Last-Lenk-Rollen: Lenkrollen:Nylon weißGebremst; Lastrollen:Nylon weiß Tandem
- Bauhöhe: 1985 mm
- Eigenschaften: Speed-Lift Pumpe
- Gesamtlänge: 1700mm
qteck® HHM1500/2500, manual high lift pallet truck
Product description of the HHM 1500/2500 manual pallet truck The HHM 1500/2500 manual high lift pallet truck is an indispensable tool in modern warehouse logistics. With the ability to lift loads of up to 1500kg to a height of up to 2500mm, it offers an excellent solution for loading and unloading vehicles as well as storing and retrieving shelves. Efficient hydraulic unit with speedlift function Thanks to the integrated hydraulic unit with speedlift function, the pallet truck offers remarkable efficiency. With loads of up to 200kg, the lifting distance per pumping process is almost doubled, which is made possible by a special hydraulic valve control system. This saves time and reduces physical effort for the operator. Versatile operating options The high-lift truck can be operated using either a hand or foot control. This offers flexibility and convenience, especially in confined working environments or with frequently changing operators. Robust design and high reliability The HHM 1500/2500 high lift pallet truck is characterised by its long service life and reliability. High-quality components and a safety and overload valve on the hydraulic pump ensure safe and long-lasting use. The ball-bearing nylon castors ensure smooth running and make the high lift pallet truck easy to manoeuvre. Technical details Maximum load capacity: 1500kg Fork length: 1150mm Load width: 550mm Load centre of gravity: 400mm Lifting range: 90-2500mm Free lift: up to approx. 400mm Nylon tyres Swivel castors: Ø180x50mm Tandem load castors: Ø80x70mm Tare weight: 265kg Application examples The HHM 1500/2500 high lift pallet truck is ideal for companies that regularly have to move heavy loads. Whether in warehouses, production facilities or when loading lorries, this high lift pallet truck provides the necessary support to make work processes more efficient and safer. Its robust design and easy manoeuvrability make it a versatile helper in any working environment.
- Gabelzinkenlänge: 1150mm
- Traglast: maximale Traglast 1500Kg
- Gabelbreite: 550mm
- Hubbereich: 90-2500mm
- Material Last-Lenk-Rollen: Lenkrollen:Nylon weißGebremst; Lastrollen:Nylon weiß Tandem
- Bauhöhe: 1845mm
- Eigenschaften: Speed-Lift Pumpe
- Gesamtlänge: 1700mm
qteck® HHM500/1200, manual high lift pallet truck
Product description: Manual high lift pallet truck HHM 500/1200 The HHM 500/1200 manual high lift pallet truck is an indispensable tool for efficiently lifting and transporting loads of up to 500 kg to a height of up to 1200 mm. Equipped with a high-quality hydraulic unit and an innovative speedlift function, this high lift pallet truck offers outstanding performance when loading and unloading vehicles and when storing and retrieving goods from shelves. Efficient lifting performance Thanks to a special hydraulic valve control system, the lifting distance for loads of up to approx. 200 kg is almost doubled per pumping operation, which significantly increases efficiency with light loads. The high-lift truck can be operated either by hand or foot control, ensuring flexibility and user-friendliness. Reliability and durability The pallet truck is equipped with high-quality components that guarantee a long service life and reliability. An integrated safety and overload valve protects the hydraulic pump from overloading, while ball-bearing nylon rollers ensure smooth running. These features make the HHM 500/1200 a versatile and easily manoeuvrable helper in any warehouse. Technical details Maximum load capacity: 500 kg Fork length: 1150 mm Load width: 550 mm Load centre of gravity: 500 mm Lifting range: 90-1200 mm Nylon tyres Swivel castors: Ø180x50 mm Tandem load castors: Ø80x70 mm Tare weight: 165 kg Application examples The HHM 500/1200 is ideal for use in warehouses, production facilities and logistics centres. It facilitates the loading and unloading of lorries and the storage and retrieval of pallets in racks. Its robust design and easy handling make it a valuable tool for anyone who regularly has to work with heavy loads.
- Gabelzinkenlänge: 1150mm
- Traglast: maximale Traglast 500Kg
- Gabelbreite: 550mm
- Hubbereich: 90-1200mm
- Material Last-Lenk-Rollen: Lenkrollen:Nylon weißGebremst; Lastrollen:Nylon weiß Tandem
- Bauhöhe: 1690 mm
- Eigenschaften: Speed-Lift Pumpe
- Gesamtlänge: 1700mm
